FM4546-S（CH) Oxygen flowmeter with Chemectron connector

PRODUCTS > Oxygen Flowmeter > FM4546-S（CH) Oxygen flowmeter with Chemectron connector

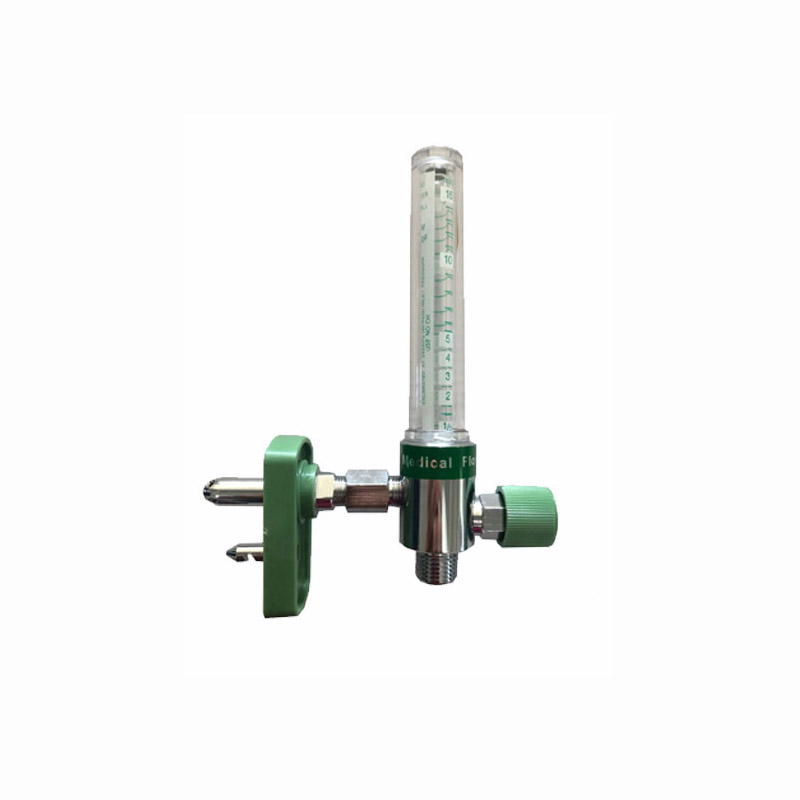

FM4546-S（CH) Oxygen flowmeter with Chemectron connector

    • 1
    • 2
Oxygen flowmeter with humidifier bottle for hospital wall
Oxygen flowmeter with Germany connector, DIN connector, Ohmeda connector, Chemeter connector, PB connector, DISS connector, Japan connector, British connector ect.
Medical oxygen flowmeter with Germany connector outlet /socket
Medical gas hose , flowmeter outlet /socket

Technical parameters detailed description .

Use: Different treatments of mechanic ventilation provided of enough oxygen flow supply

The main part of the valve is made of PC of reinforced plastic material. It is resistant of fallen, anti-pressure and  it is hard to broke.

.The steel ball in the tube it is made of an antioxidant material. Therefore the flow remains stable..Oxygen flow accuracy can be assured by the valve of antioxidant steel nail.

.Working pressure : 4.5 bar

.Setting ranges:   , 0-1L, 0-3.5L, 0-5L, 0-8L, 0-15L, 0-25L, 0-70L.

Accuracy of flow rate :  ±10%

Screw thread of accessory :

Oxygen M10*1 or 1/8 “adapter

Medical air  M10*1 or 1/8 “ adapter

Material  Flowmeter:  Aluminum or Brass
